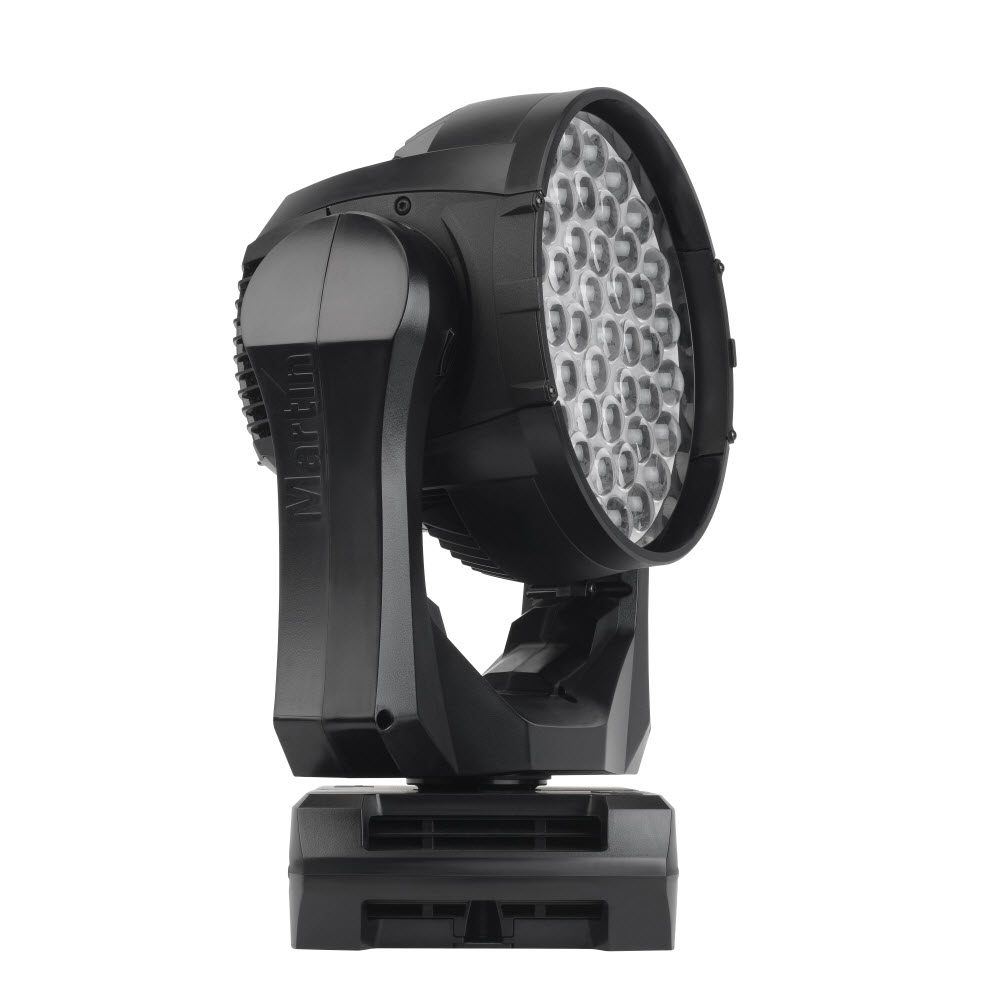

[Product] MAC Quantum Wash


MAC Quantum Wash [30ea]

  • Bright and perfect RGBW LED wash light for demanding applications
  • Quick 1:5 zoom for tight beams and even washes
  • Unique and expressive Colorganics™ system
  • Highly efficient optical system
  • Eye-candy Aura Effect™
  • Beamtwister effects via rotating front lens
  • Very low weight and compact design
  • Super high-speed movements and effects

  • Physical
    Length: 452 mm (17.8 in.)
    Width (across yoke): 431 mm (17 in.)
    Height (maximum): 581 mm (22.9 in.)
    Height (head straight up): 511 mm (20.1 in.)
    Weight: 21 kg (46.3 lbs.)

  • Dynamic Effects
    Color mixing: RGBW
    Beam effects: Beam twister, light and color morphing, color spin
    'Color wheel' effect: 36 solid colors plus white, variable-speed 'color wheel rotation'
    effect and random color
    Color ring effects: 36 split ring colors with variable-speed color wheel rotation effects
    Shutter effect: Electronic, with variable speed regular and random strobe
    Pre-programmed effects: Range of synchronized and independent color, intensity,
    beam twister and zone effects
    Electronic dimming: Four dimming curve options
    Color temperature control: Variable 2000 - 10 000 K
    Zoom: Motorized
    Pan: 540°
    Tilt: 270°
    Pan and tilt speed: Adjustable via onboard control panel and DMX

  • Control and Programming
    Control system: DMX
    Control options: Independent control of color ring/beam zones
    Macro programs selectable via DMX: Range of synchronized and independent color,
    intensity, beam twister and zone effects
    RDM: Implemented
    Control resolution: 8-bit, with 16-bit control of pan, tilt, dimming and lens rotation
    DMX channels: 33/17
    Setting and addressing: Control panel with backlit graphic display
    DMX compliance: USITT DMX512-A
    RDM compliance: ANSI/ESTA E1.20
    Transceiver: RS-485
    Fixture software update: USB memory device or USB/DMX hardware interface over
    DMX link

  • Optics
    Light source: 50 x 15 W RGBW LEDs
    LED refresh rate: Beam 3000 Hz, Aura 3000 Hz
    Minimum LED lifetime: 50 000 hours (to >70% luminous output)*
    Zoom range: 11–53° (1:5)
    Output: 16 000 lm
    *Figure obtained under manufacturer´s test conditions:

  • Construction
    Color: Black
    Housing: High-impact flame-retardant thermoplastic
    Protection rating: IP20

  • Installation
    Mounting points: 2 pairs of 1/4-turn locks
    Location: Indoor use only, must be fastened to surface or structure
    Orientation: Any
    Minimum distance to combustible materials: 0.2 m
    Minimum distance to illuminated surfaces: 2.0 m

  • Connections
    AC power input: Neutrik PowerCon
    DMX and RDM data in/out: 5-pin locking XLR

  • Electrical
    AC power: 120-240 V nominal, 50/60 Hz
    Maximum total power consumption: 1020 W
    Power supply unit: Auto-ranging electronic switch mode
    Typical power consumption, all effects static, zero light output: Approx. 50 W
    Typical half-cycle RMS inrush current: 10.3 A

  • Typical Power and Current
    120 V, 60 Hz: 7.4 A, 880 W, PF 0.999
    208 V, 60 Hz: 4.2 A, 860 W, PF 0.995
    230 V, 50 Hz: 3.8 A, 856 W, PF 0.993
    240 V, 50 Hz: 3.7 A, 858 W, PF 0.992
    Measurements made at nominal voltage with all LEDs at full intensity. Allow for a
    deviation of +/- 15%.:
    Cooling: Forced air (temperature-regulated, low noise, user-definable levels)
    Maximum ambient temperature (Ta max.): 40° C
    Minimum ambient temperature (Ta min.): 5° C
    Max. total heat dissipation (calculated, +/- 15%): 3480 BTU/hr.
